Harvia Xenio WiFi Remote Control
Harvia Xenio WiFi Remote Control

Harvia Xenio WiFi Remote Control

Sale price$443.00 Regular price$473.00
Save $30.00
SKU: CX004WIFI

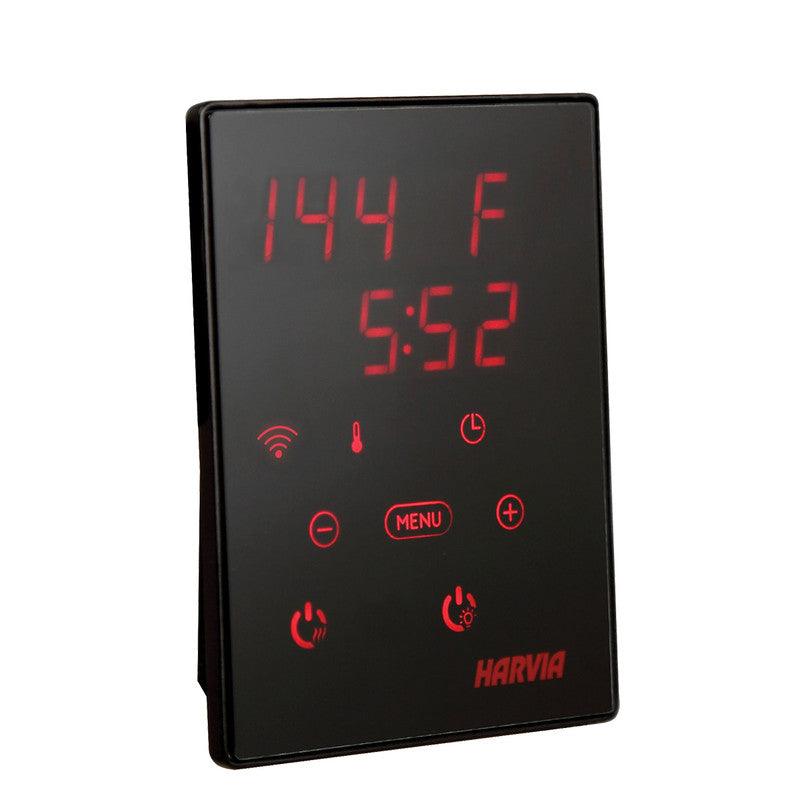

The modern and stylish Harvia Xenio WiFi is a sauna control panel that you can connect to the Harvia Xenio control unit. The control panel can be connected to a wireless LAN, after which you can enjoy wireless functions with the MyHarvia mobile application. Harvia Xenio WiFi enables a variety of installation options and can also be easily installed afterward to replace the old control panel. We recommend that you place the control panel near the sauna door as a surface installation or embedded into the wall. The control panel enables easy and clear sauna control. You can start and adjust the sauna temperature with the control panel buttons. The illuminated buttons on the display make it easy to use even in low lighting conditions. Follow your sauna’s status with the MyHarvia mobile application or on the control panel’s digital display. The door sensor of the sauna’s remote starting status can be activated straight from the control panel.

Compatible devices: CX170-U1, CX170-U3, CX30-U1-U3, CX45-U1-U3, CX30C-U1, CX30C-U3

Xenio Control(s) Compatibility -

Serial Number greater than: 2034000000

CX30-U1-U3
CX45-U1-U3
CX30C-U1
CX30C-U3
CX1502083-15
Serial Number greater than: 2036000000

CX1502401-15

Features
  • A remote control package for Harvia Xenio control units, which allow the WiFi remote use of the sauna.
  • Easy installation
  • Dimensions 3.4"W (86mm) x 1"D (25mm)x 4.4"H (111mm)
  • Control lighting
  • Control of fan
  • On-time feature
  • Timed start feature
  • Week clock
  • Safety device option
  • Time zone selection
  • Daylight saving selection
  • Temperature adjustment
  • Humidity adjustment
  • Access to control panel updates for the latest features and improved functions
Includes
  • Control unit
  • installation manual (No cables included)
  • 1-year Limited Warranty
Specification
Model Xenio WiFi Remote Control
Power Consumption Peak 2W, average 600mW
Wifi Frequency Band 2.4 GHz
Supply 12-24VDC
Connection 4-pin: +12VDC, GND, RS485 A+B
Electrical Frequency 50/60Hz
Weight 0.3lbs
Width 3.34" (84mm)
Depth 0.9" (22mm)
Height 4.3" (109mm)
MyHarvia Application
Temperature adjustment range 104-194F
Humidity adjustment range 20-80rH
On time 1 hour
Control of lighting On/Off button- Automation: ON when the heater turns on
Control of fan On/Off button- Automation: ON when the heater turns off
Timed start adjustment range 0-12hr/For one heating/Based on calendar
Weekly clock Max 8 programs
Safety device option Safety switch (Optional)
Time zone selction Yes
Daylight savings selection Yes
